Sterilising-Grade Filtration vs Clarification Filtration - What's the Difference?

By Donal O’Sullivan, BSc. Reviewed by Michael Anderson, MBA.



Laboratory filtration is often described as a single process, yet in practice it encompasses several distinct workflows, each designed to achieve a specific objective. Two of the most commonly misunderstood are clarification filtration and sterilising-grade filtration. Although both involve passing a liquid through a membrane or filter medium, they are not interchangeable, nor do they deliver the same outcome.

Selecting the wrong filtration approach can affect analytical accuracy, compromise microbiological integrity, increase operating costs and, in regulated environments, lead to significant compliance issues. Understanding the purpose of each workflow is therefore an important part of good laboratory practice rather than simply a matter of consumable selection.

For a broader overview of laboratory filtration principles, technologies and applications, see The Ultimate Guide to Laboratory Filtration.

This guide focuses on one specific question:

Should your application use clarification filtration or sterilising-grade filtration?

This article first explains what distinguishes the two workflows, then provides a practical decision framework, worked examples and a summary comparison table to help you choose with confidence.

Rather than examining membrane chemistry or pore-size optimisation in detail, this article provides a practical framework for selecting the correct workflow. Once that decision has been made, the more detailed implementation guidance is covered in dedicated companion articles. This guide is written for laboratory scientists, QA/QC personnel and laboratory managers responsible for selecting appropriate filtration workflows.

Why These Two Filtration Workflows Are Frequently Confused

The confusion surrounding clarification and sterilising-grade filtration is understandable. Both processes often use membrane-based filters, similar laboratory equipment and comparable operating procedures. In many laboratories, they may even be performed by the same personnel using visually similar consumables.

However, the purpose of each workflow is fundamentally different.

Clarification filtration is intended to improve the physical quality of a liquid by removing suspended particles that could interfere with downstream processing or analysis. The objective is cleaner samples, improved flow characteristics and protection of laboratory equipment from particulate contamination.

Sterilising-grade filtration, by contrast, is designed to remove viable microorganisms from liquids to produce a sterile filtrate under appropriately validated conditions, meaning validated bacterial retention against a defined worst-case challenge organism rather than absolute sterility against every possible contaminant. Its purpose is microbiological control rather than simple particulate reduction.

Because both workflows can involve membranes with fine pore structures, it is easy to assume they are simply different versions of the same process. In reality, they are designed to solve different laboratory challenges and should therefore be selected based on the required outcome rather than the appearance of the filter.

What Is Clarification Filtration?

Clarification filtration is the process of removing suspended particulate matter from a liquid without intending to produce a sterile product, typically using membranes around 0.45 µm or larger.

The particles removed may include:

• cell debris;
• precipitated proteins;
• insoluble salts;
• environmental dust;
• sample residues; and
• other visible or microscopic particulate contaminants.

The objective is to improve sample quality before a subsequent analytical, biological or manufacturing step.

Typical benefits include:

• reducing instrument blockages;
• protecting chromatography columns;
• improving optical clarity;
• reducing downstream filter loading;
• extending the service life of analytical equipment; and
• improving consistency between samples.

Importantly, clarification filtration should not be interpreted as a method of sterilisation. While some microorganisms may be removed incidentally depending on filter characteristics and sample composition, clarification filtration is not intended or validated to achieve microbial removal suitable for sterile applications. Clarification filtration must never be relied upon to reduce microbial bioburden to any defined or validated level.

Typical Applications for Clarification Filtration

Clarification filtration is routinely used across a wide range of laboratory environments because many analytical and processing techniques require samples to be free from excessive particulate contamination.

Common applications include:

Laboratory Activity	Purpose of Clarification
HPLC and UHPLC sample preparation	Remove particulates that could block columns or increase system pressure
Environmental water testing	Remove suspended solids before analysis
Protein sample preparation	Remove aggregates before analytical measurement
Cell culture processing	Remove cellular debris prior to downstream purification
General analytical chemistry	Improve sample consistency and instrument protection
Food and beverage analysis	Produce cleaner samples for analytical testing

In each of these examples, the objective is to improve sample quality rather than establish sterility.

What Is Sterilising-Grade Filtration?

Sterilising-grade filtration is a specialised filtration workflow designed to remove viable microorganisms from liquids using filters that have been validated for bacterial retention under defined operating conditions, typically using membranes rated at 0.22 µm (sometimes 0.2 µm) and validated through bacterial challenge testing (for example to ASTM F838) using a defined worst-case organism such as Brevundimonas diminuta.

Unlike clarification filtration, the desired outcome is not simply a cleaner sample but a filtrate suitable for applications requiring microbiological control. Validated bacterial retention does not, by itself, confirm removal of all viable contaminants — viruses and mycoplasma, for example, fall outside standard sterilising-grade validation and require separate, dedicated processes where relevant.

These terms are related but distinct: sterilising-grade filtration refers to filtration using a filter validated to a defined bacterial-retention standard, while sterile filtration and aseptic processing describe the broader controlled workflows within which such filtration is performed.

Sterilising-grade filtration is commonly used when laboratories prepare:

• sterile media;
• buffer solutions;
• biological reagents;
• pharmaceutical formulations;
• tissue culture supplements; and
• other liquids that must remain free from viable microbial contamination.

In pharmaceutical and biotechnology workflows, sterilising-grade filtration is commonly preceded by a pre-filtration or bioburden-reduction step to protect the sterilising-grade filter and support consistent performance.

The effectiveness of sterilising-grade filtration depends upon the complete filtration system (including upstream pre-filtration where applicable), the membrane used, operating conditions and appropriate validation, including post-use filter integrity testing (for example bubble point or diffusive flow testing). It should therefore be regarded as part of a controlled sterile workflow rather than an isolated filtration step.

Filter manufacturers typically provide a validation guide or data package supporting bacterial-retention claims for specific applications, which laboratories can reference when documenting their own process validation.

Because this article focuses on workflow selection, detailed discussion of membrane materials, validation procedures and pore-size requirements is intentionally reserved for Sterile Filtration Explained: Choosing the Correct Membrane and Pore Size.

The Fundamental Difference Is the Intended Outcome

Although the equipment used for clarification and sterilising-grade filtration may appear similar, the question laboratories should ask is usually straightforward:

What are you trying to achieve?

If the objective is to remove suspended particles that could interfere with analytical performance or downstream processing, clarification filtration is generally the appropriate workflow.

If the objective is to produce a sterile filtrate, sterilising-grade filtration should be considered.

This distinction shifts the decision away from selecting a particular filter and towards selecting the correct laboratory process.

Thinking in terms of workflow rather than consumables helps laboratories make more consistent technical decisions and reduces the likelihood of applying an inappropriate filtration method simply because a particular membrane or pore size is readily available.

Why the Wrong Workflow Can Create Problems

Selecting clarification filtration when sterile filtration is required may leave viable microorganisms within the filtrate, potentially compromising downstream biological processes, microbiological testing or pharmaceutical preparation, and in GMP-regulated manufacture can result in batch rejection or product recall.

Conversely, applying sterilising-grade filtration to applications that only require clarification may introduce unnecessary cost, increase filtration time and add validation requirements without providing additional technical benefit.

Neither workflow is inherently "better" than the other. Each is appropriate only when matched to the intended laboratory objective.

Recognising this distinction is the first step towards building a consistent filtration strategy that supports analytical quality, operational efficiency and regulatory compliance where applicable.

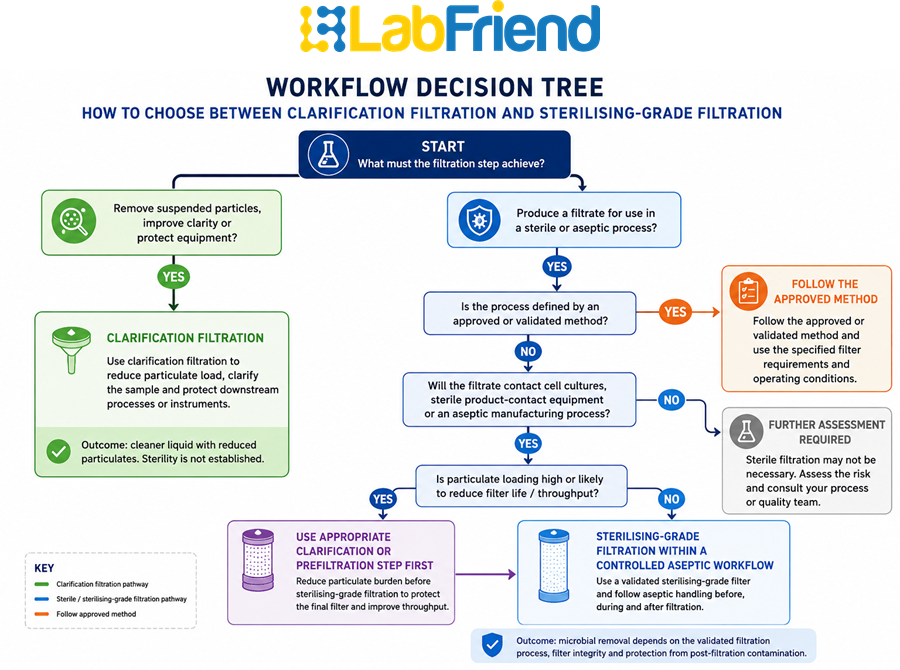

A Practical Framework for Choosing the Correct Filtration Workflow

One of the simplest ways to avoid filtration errors is to stop thinking about filters first and instead begin by defining the objective of the process.

Experienced laboratory professionals rarely ask:

"Which filter should I buy?"

Instead, they ask:

"What am I trying to achieve?"

Once the desired outcome has been established, selecting the appropriate filtration workflow becomes considerably more straightforward.

The decision process can generally be reduced to four key questions.

1. Is particulate removal the primary objective?

If the purpose of filtration is to remove suspended particles, protect analytical instrumentation or improve sample clarity, clarification filtration is often the appropriate starting point.

Typical examples include:

• preparing HPLC and UHPLC samples;
• removing precipitates before spectroscopic analysis;
• protecting pumps and analytical columns;
• reducing particulate loading before additional processing; and
• improving sample consistency.

In these situations, the emphasis is on improving the physical characteristics of the sample rather than producing a sterile filtrate.

2. Must the final liquid be sterile?

If the filtrate will be used in applications where viable microorganisms cannot be tolerated, sterilising-grade filtration should be considered.

Examples include:

• preparation of sterile culture media;
• sterile buffer preparation;
• filtration of heat-sensitive biological solutions;
• pharmaceutical formulation;
• aseptic laboratory workflows; and
• sterile reagent preparation.

Here, the purpose extends beyond clarification to microbiological control.

3. Is the filtration step part of a validated process?

Many laboratories operate within regulated environments where filtration procedures form part of documented analytical or manufacturing methods.

Examples include:

• GMP pharmaceutical production (including current EU/UK GMP Annex 1 requirements for sterile medicinal products);
• MHRA-regulated UK pharmaceutical manufacture;
• ISO 13485 medical device manufacturing (where any filtration steps used must be validated and documented under the site's quality management system);
• biotechnology production;
• regulated microbiology laboratories; and
• validated quality control procedures.

Where filtration forms part of a validated workflow, laboratories should always follow the approved procedure rather than substituting alternative filtration approaches based on convenience or availability.

4. What happens after filtration?

Considering the next process step often helps determine the appropriate workflow.

If the filtrate will be:

• injected into analytical instrumentation;
• analysed chemically;
• subjected to spectroscopy;
• concentrated further; or
• processed through additional purification,

clarification may be entirely appropriate.

If the filtrate will:

• contact sterile biological systems;
• support cell culture;
• enter aseptic manufacture;
• be stored as a sterile reagent; or
• require microbiological integrity,

sterilising-grade filtration is generally the appropriate workflow.

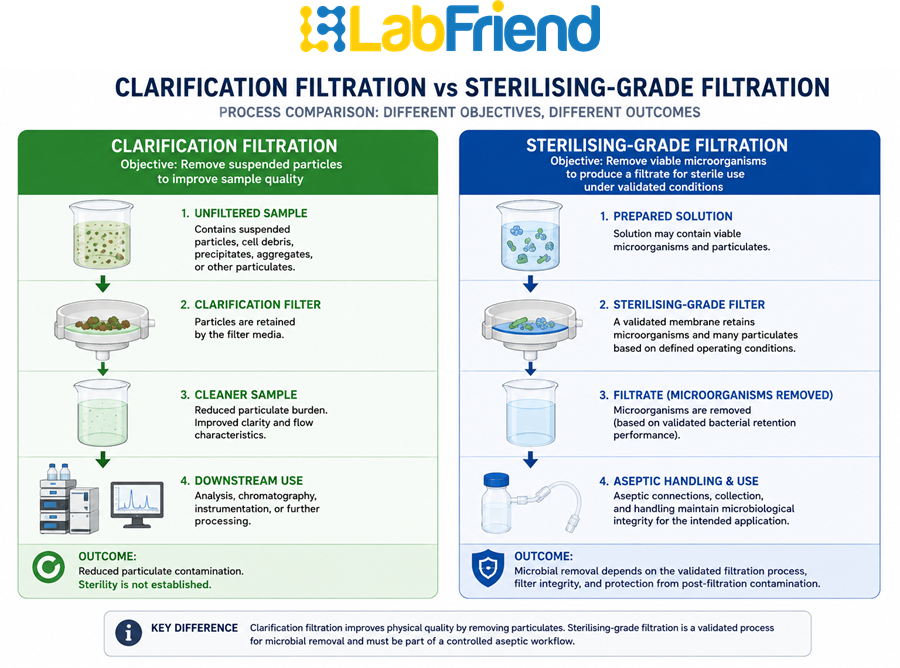

Side-by-Side Comparison

Although clarification and sterilising-grade filtration share some common equipment, their objectives differ significantly.

Characteristic	Clarification Filtration	Sterilising-Grade Filtration
Primary objective	Remove suspended particulates	Remove viable microorganisms under validated conditions
Typical outcome	Cleaner sample	Sterile filtrate
Typical applications	Analytical chemistry, chromatography, environmental testing	Cell culture, sterile media, pharmaceutical preparation
Instrument protection	Yes	Secondary benefit only — not the primary function
Microbiological control	Not the intended objective	Primary objective
Validation requirements	Application dependent	Typically required — includes bacterial challenge testing and filter integrity testing
Typical user	Analytical laboratories (including QC labs in regulated industries)	Pharmaceutical, biotechnology and microbiology laboratories
Relative cost and throughput	Lower cost, higher throughput	Higher cost, additional validation time

This comparison illustrates why the two workflows should not be regarded as interchangeable.

Typical Laboratory Examples

Considering real laboratory scenarios often makes workflow selection easier.

Scenario 1 – Preparing Samples for HPLC Analysis

A quality control laboratory is preparing pharmaceutical samples for chromatographic analysis.

The objective is to remove suspended particles that could increase system pressure or damage chromatography columns.

The analytical method does not require the sample to remain sterile.

Recommended workflow:

Clarification filtration, since sterility is not required for chromatographic analysis.

Scenario 2 – Preparing Sterile Cell Culture Media

A biotechnology laboratory prepares nutrient media for mammalian cell culture.

Particulate removal alone is insufficient because viable microorganisms could compromise the culture.

Recommended workflow:

Sterilising-grade filtration, since viable microorganisms would compromise the cell culture.

Scenario 3 – Environmental Water Analysis

Water samples collected from field locations contain suspended particulate matter that could interfere with instrumental analysis.

Sterility is not required because the objective is analytical measurement rather than biological use.

Recommended workflow:

Clarification filtration, since the objective is analytical measurement rather than biological use.

Scenario 4 – Sterile Buffer Preparation

A pharmaceutical development laboratory prepares buffers that will be introduced into aseptic manufacturing operations.

Maintaining microbiological integrity is essential.

Recommended workflow:

Sterilising-grade filtration, since microbiological integrity must be maintained for aseptic manufacturing.

Common Workflow Selection Mistakes

Many filtration problems arise because laboratories attempt to solve every application using a familiar filtration procedure rather than selecting the workflow most appropriate for the task.

The most common mistakes include:

Assuming Smaller Pore Sizes Automatically Produce Better Results

A finer membrane does not necessarily make clarification filtration equivalent to sterilising-grade filtration.

The workflow objective remains the determining factor.

Readers requiring guidance on pore-size selection should refer to 0.22 µm vs 0.45 µm Syringe Filters: When Should You Use Each?.

Treating Every Filtration Step as Sterile Filtration

Using sterilising-grade filtration where clarification alone is required may increase costs, reduce filtration throughput and introduce unnecessary process complexity without improving analytical performance.

Assuming Clarification Removes Microbiological Risk

Clarification filtration should never be relied upon where microbiological control is the objective.

If sterility is required, the complete sterile filtration workflow should be evaluated rather than assuming clarification provides equivalent protection.

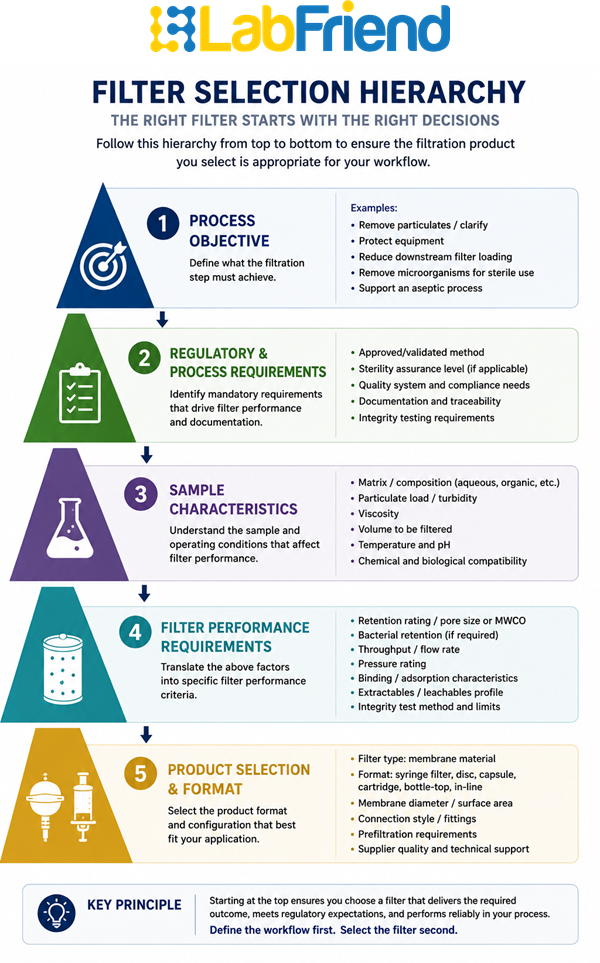

Selecting Filters Before Defining the Workflow

Purchasing decisions should always follow workflow selection.

Choosing a membrane before defining the filtration objective often results in unnecessary complexity and inconsistent laboratory practice.

Decision Matrix

The following matrix provides a practical summary for routine laboratory decision-making.

If your objective is to...	Recommended Workflow
Remove suspended particles	Clarification filtration
Protect analytical instruments	Clarification filtration
Improve sample clarity	Clarification filtration
Prepare sterile biological solutions	Sterilising-grade filtration
Produce sterile culture media	Sterilising-grade filtration
Support aseptic pharmaceutical workflows	Sterilising-grade filtration
Ensure the filtrate is free from viable microorganisms	Sterilising-grade filtration

Notice that every recommendation is based upon the purpose of the filtration step, not the membrane material or filter specification.

This workflow-first approach reduces decision-making errors and creates a more consistent laboratory filtration strategy.

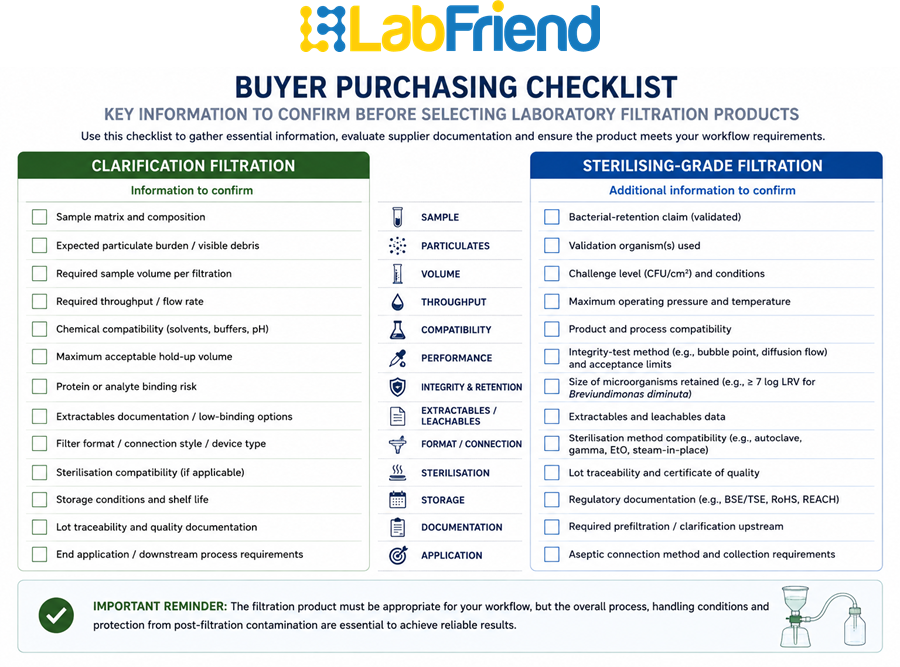

Purchasing Considerations: Selecting Products That Match the Workflow

Once the correct filtration workflow has been identified, selecting appropriate filtration products becomes considerably more straightforward.

One of the most common purchasing mistakes is evaluating filtration products in isolation from their intended application. Instead, laboratories should begin by confirming the objective of the workflow before considering membrane specifications, pore sizes or product formats.

For clarification workflows, purchasing decisions are typically influenced by factors such as:

• compatibility with the sample matrix;
• particulate loading;
• sample volume;
• filtration throughput;
• chemical compatibility; and
• instrument protection.

For sterilising-grade workflows, additional considerations become important, including:

• validated bacterial retention;
• suitability for aseptic processes;
• documentation supporting quality systems;
• product traceability;
• manufacturing consistency;
• regulatory compliance where applicable;
• shelf life and storage conditions; and
• lot-to-lot consistency documentation.

By separating workflow selection from product selection, laboratories can simplify procurement while reducing the likelihood of purchasing consumables that exceed—or fail to meet—the technical requirements of the application.

Building a Consistent Laboratory Filtration Strategy

As laboratories grow, filtration decisions often become decentralised. Different departments may purchase different filter types for similar applications, leading to unnecessary product variation and inconsistent working practices.

Developing a standardised filtration strategy helps address this challenge.

An effective laboratory filtration strategy typically defines:

Strategy Element	Purpose
Approved clarification workflows	Standardise analytical sample preparation
Approved sterile workflows	Maintain microbiological control where required
Preferred suppliers	Improve purchasing consistency
Validation requirements	Ensure new products are assessed appropriately
Documentation standards	Support quality management systems
Staff training	Promote consistent workflow selection

Rather than attempting to standardise on a single filter product, successful laboratories standardise the decision-making process that determines which workflow should be used.

This approach improves consistency while allowing appropriate flexibility for different analytical and biological applications.

Questions to Ask Before Choosing a Filtration Workflow

Before selecting any filtration product, laboratories should be able to answer several fundamental questions. These questions build on the four-question framework outlined earlier and are intended as a final check before purchasing.

What is the purpose of the filtration step?

Is the objective simply to remove particulate contamination, or is microbiological control required?

Clearly defining the objective remains the single most important factor influencing workflow selection.

Will the filtrate contact a sterile system?

If the filtered liquid will be introduced into cell cultures, aseptic manufacturing or other sterile processes, clarification alone is unlikely to be sufficient.

Does the analytical or manufacturing method specify the filtration approach?

Many regulated methods include defined filtration requirements. Where these exist, the documented procedure should always take precedence over general guidance.

What are the consequences of selecting the wrong workflow?

Understanding the impact of an incorrect decision helps laboratories apply an appropriate level of technical review before purchasing filtration consumables.

These simple questions encourage a structured decision-making process rather than relying on habit or historical purchasing patterns.

Supporting Good Laboratory Practice

Good laboratory practice extends beyond following analytical methods. It also includes selecting consumables that are appropriate for their intended purpose.

Choosing clarification filtration where sterilising-grade filtration is required may compromise downstream biological applications, while selecting sterilising-grade filtration for routine clarification tasks may introduce unnecessary complexity and cost.

Neither workflow should be viewed as universally superior.

Instead, laboratories should consider each as a specialised process designed to solve a particular problem.

Maintaining this distinction helps improve:

• method consistency;
• laboratory efficiency;
• equipment protection;
• microbiological control where required;
• procurement decisions; and
• confidence in analytical and biological workflows.

How LabFriend Supports Laboratory Filtration Decisions

Selecting the correct filtration workflow is often the first step in choosing suitable laboratory filtration products.

LabFriend supports UK laboratories by providing practical technical guidance alongside a comprehensive portfolio of laboratory filtration consumables for analytical, pharmaceutical, biotechnology and research applications.

Rather than promoting a single solution for every laboratory, our approach is to help scientists and laboratory managers understand the technical requirements of their application before selecting products that align with those requirements.

If your workflow requires clarification filtration, selecting products designed for efficient particulate removal can improve analytical consistency while protecting valuable laboratory instrumentation.

If your application requires sterilising-grade filtration, the next stage is understanding how membrane selection, pore size and validated bacterial retention influence successful sterile workflows. That topic is explored in Sterile Filtration Explained: Choosing the Correct Membrane and Pore Size.

Laboratories wishing to explore suitable products can browse the Sterile Filters range to identify filtration solutions appropriate for sterile laboratory applications.

Further Reading

To continue building your understanding of laboratory filtration, the following authority resources provide complementary guidance without duplicating the topics covered in this article.

• The Ultimate Guide to Laboratory Filtration – Comprehensive overview of laboratory filtration technologies and applications.
• Sterile Filtration Explained: Choosing the Correct Membrane and Pore Size – Detailed guidance on implementing sterile filtration after selecting the appropriate workflow.
• 0.22 µm vs 0.45 µm Syringe Filters: When Should You Use Each? – Practical advice on pore-size selection for analytical filtration.
• Filter integrity testing (bubble point and diffusive flow testing) – A related topic worth exploring for laboratories implementing sterilising-grade filtration as part of a validated process.

Together, these publications form part of LabFriend's Laboratory Filtration knowledge base, helping laboratories move logically from understanding filtration principles to selecting appropriate workflows and consumables.

Conclusion

Clarification filtration and sterilising-grade filtration are often discussed together because both rely on membrane filtration technologies. However, they are designed to achieve fundamentally different objectives.

Clarification filtration focuses on improving sample quality by removing suspended particulates that could interfere with downstream analysis or processing.

Sterilising-grade filtration focuses on producing a sterile filtrate through validated bacterial retention.

Recognising this distinction allows laboratories to select the appropriate workflow before evaluating membranes, pore sizes or individual products. This workflow-first approach reduces unnecessary complexity, supports consistent laboratory practice and helps ensure filtration consumables are selected for the purpose they are intended to fulfil.

By defining the objective before selecting the filter, laboratories can make better technical decisions, improve procurement consistency and build more robust analytical and biological workflows.







Written by: Donal O’Sullivan, BSc, Co-Founder and Sales Director, LabFriend UK. Donal brings deep chemistry-led technical expertise across analytical chemistry, biochemistry, environmental monitoring, laboratory instrumentation, consumables and scientific product selection.

Reviewed by: Michael Anderson, MBA, Founder and Managing Director, LabFriend UK. Michael reviews LabFriend UK content for customer relevance, commercial accuracy, operational practicality and alignment with LabFriend UK’s laboratory supply model.
