GC Consumables Replacement Planning for Busy UK Laboratories

By Donal O’Sullivan, BSc. Reviewed by Michael Anderson, MBA.



Busy gas chromatography laboratories rarely suffer disruption because someone forgot that GC consumables exist. The problem is usually more practical. A liner is changed only after carryover appears. Septa are reordered when the last pack is opened. A ferrule is reused once too often during a column change. A syringe is replaced after injection reproducibility has already started to suffer. A gas filter is checked only when baseline instability becomes difficult to ignore. A GC column is replaced under pressure because the method is needed today, not next week.

For a busy UK laboratory, this reactive approach creates avoidable risk. GC consumables are relatively small items, but they support injection quality, leak control, gas purity, chromatographic separation and method continuity. When replacement is left until a problem appears, the laboratory may lose time to troubleshooting, reruns, urgent ordering, delayed reports or interrupted QA/QC (Quality Assurance/Quality Control) workflows. This guide is written for lab managers, QA/QC staff and procurement teams responsible for keeping GC systems consistently ready for use.

This article focuses specifically on replacement planning for gas chromatography consumables. For wider chromatography consumables guidance, including HPLC, UHPLC, syringe filters, vials, liquid chromatography sample preparation products, HPLC columns, solvent handling and LC workflow consumables, read The Complete Guide to Chromatography Consumables for UK Laboratories. The pillar guide covers chromatography consumables across HPLC, UHPLC, GC, headspace, SPE and TLC workflows, including both liquid chromatography and gas chromatography product groups.

LabFriend UK supplies GC consumables, GC columns, wider gas chromatography products and broader chromatography supplies for UK laboratories.

Quick answer: how should laboratories plan GC consumables replacement?

Busy laboratories should plan GC consumables replacement by combining method-led replacement triggers, minimum stock levels, approved specifications and repeat-order records.

A fixed calendar schedule can help, but it should not be the only control. Replacement timing depends on injection frequency, sample matrix, method sensitivity, inlet configuration, column condition, gas quality requirements and observed instrument behaviour. A laboratory running dirty samples all day may need a different replacement pattern from a laboratory running clean standards occasionally. Readers less familiar with GC hardware may find it easiest to start with the summary table below before reading the consumable-by-consumable sections in detail.

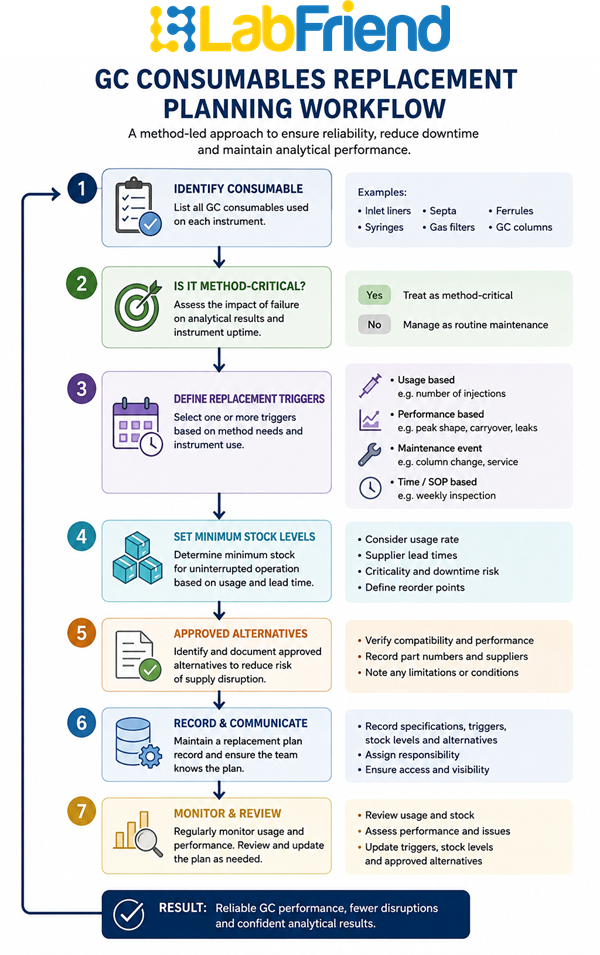

The best replacement plan answers four practical questions:

Planning question	Why it matters
Which GC consumables are method-critical?	Helps identify items that should not be substituted casually
What triggers replacement?	Prevents waiting until visible failure or poor data
What minimum stock should be held?	Reduces emergency ordering and downtime risk
Who approves alternatives?	Prevents uncontrolled substitution under time pressure

For most routine GC laboratories, the replacement plan should include inlet liners, septa, ferrules, syringes, gas filters, GC columns, seals, O-rings and key fittings. The exact list should be adjusted to the instrument, method, detector and sample workload.

Why GC consumables replacement planning matters

GC consumables are exposed to heat, volatile compounds, carrier gases, repeated injections and physical installation stress. The chromatography pillar guide identifies common GC consumables such as inlet liners, septa, ferrules, capillary columns, micro syringes, gas filters, traps, column nuts and O-rings, and notes that these products should be inspected and replaced according to method use, sample matrix and instrument behaviour.

That phrase — method use, sample matrix and instrument behaviour — is the core of good replacement planning.

A lab manager does not need a theoretical consumables schedule. They need a practical system that helps the laboratory avoid unnecessary disruption. This means knowing which parts are used frequently, which parts fail gradually, which parts create sudden downtime, and which parts need technical approval before substitution.

In a QA/QC or contract testing environment, replacement planning is not just a maintenance issue. It affects throughput, analyst time, client reporting, batch release, rerun rates and confidence in results. A GC system that is technically available but missing the correct liner, septum, ferrule, syringe or column is not truly available for work.

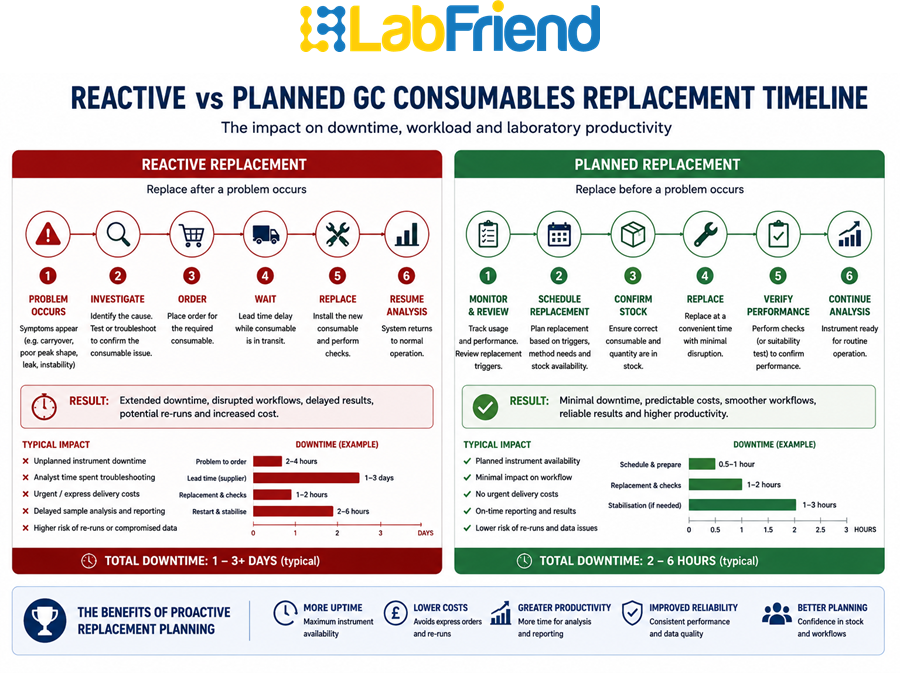

Reactive replacement vs planned replacement

Reactive replacement is simple, but expensive in hidden ways. The laboratory waits until a problem occurs, then tries to identify whether the cause is the liner, septum, ferrule, syringe, column, gas filter, sample, method or instrument. Sometimes that investigation is necessary. Often, however, the problem could have been reduced by a clearer replacement routine and better stock control.

Planned replacement does not mean replacing everything early. That would waste consumables and increase cost unnecessarily. Planned replacement means the laboratory understands the normal wear points in its GC workflow and replaces or inspects consumables before they become predictable sources of disruption.

The strongest approach is usually a hybrid:

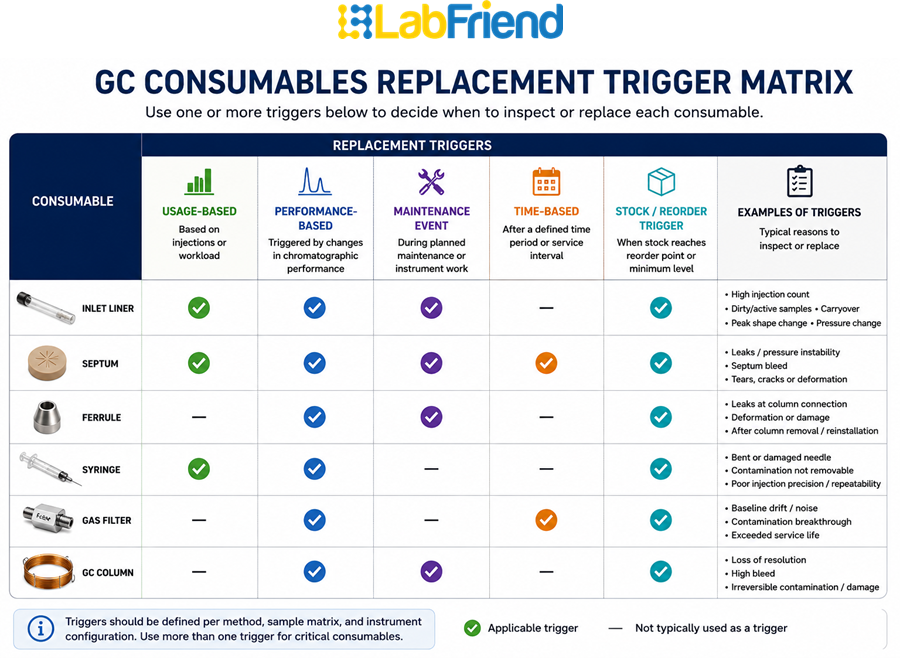

Replacement approach	Best use
Usage-based replacement	High-throughput methods where injection count or workload is a useful guide
Performance-triggered replacement	Methods where symptoms such as carryover, poor peak shape, leaks or instability indicate action
Method-defined replacement	Validated, client-specified or SOP-controlled workflows
Event-based replacement	Column changes, inlet maintenance, gas line changes or instrument work
Stock-triggered reordering	Prevents running out of routine consumables

This combination gives the lab manager flexibility without leaving the laboratory dependent on memory, habit or emergency ordering.

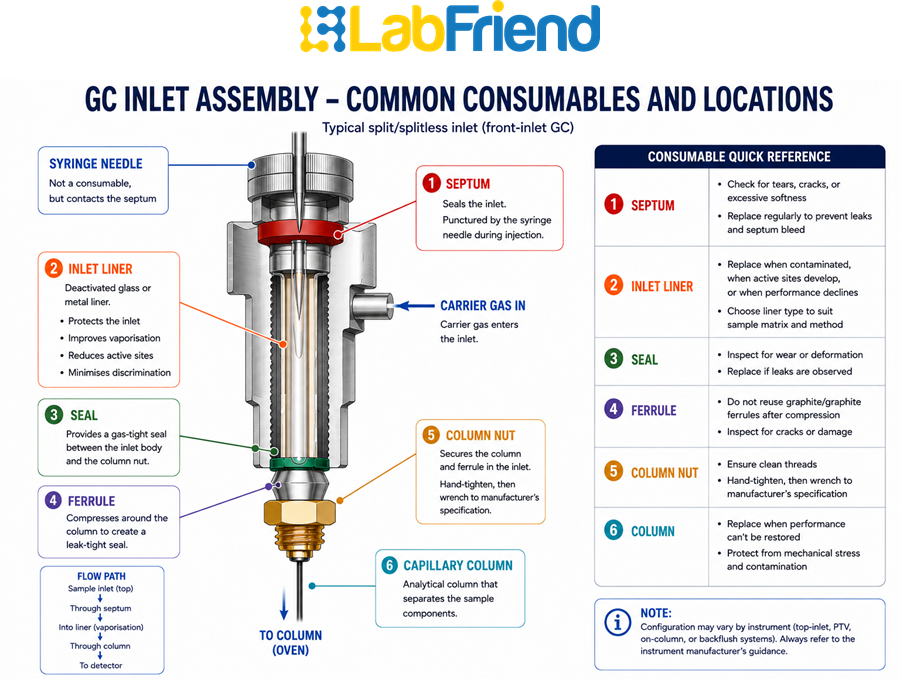

Planning replacement for GC inlet liners

GC inlet liners are often the first consumable to consider because they sit directly in the sample introduction pathway. Liners support sample vaporisation and transfer into the column, and the pillar guide notes that liner geometry, volume, deactivation and packing can affect peak shape, sensitivity, discrimination and contamination. Deactivation (silanization) reduces active surface sites on the liner glass that can otherwise adsorb or degrade polar or reactive analytes, so liners for sensitive compounds typically require a specific deactivation grade rather than a generic uncoated liner.

In practical terms, liners may need attention when samples are dirty, active compounds are being analysed, peak shape changes, carryover (residual sample retained from a previous injection) increases, or reproducibility declines. Some laboratories replace liners at defined intervals for routine methods. Others replace them after a set number of injections, after dirty sample batches, or when performance symptoms appear.

The right approach depends on the workload. A laboratory running clean solvent standards may not need the same liner replacement frequency as a laboratory analysing environmental extracts, food samples, fragrance samples, petrochemical matrices or formulation residues.

A useful liner replacement record should capture the liner type, inlet compatibility, method, sample matrix, expected replacement trigger and minimum stock quantity. If the method depends on a specific geometry, deactivation or packing, substitutions should be reviewed before use.

Planning replacement for septa and seals

Septa are repeatedly pierced during GC injections. Over time, piercing, heat exposure and sample conditions can contribute to wear, coring, leakage or contamination. In some workflows, septa are simple routine consumables. In others, they can influence data quality and instrument reliability.

A lab manager should not wait until a septum is obviously failing before planning stock. Septa are low-cost compared with the disruption caused by leaks, poor sealing or contamination investigations. The replacement plan should take account of injection frequency, inlet temperature, autosampler use, sample type and method sensitivity.

Seals and O-rings should be treated similarly. They may not be replaced as frequently as septa, but when they are needed, the correct specification matters. A missing seal can delay work just as effectively as a missing column.

For busy laboratories, the practical approach is to group septa, seals, O-rings and inlet support parts into a small approved stock list. This avoids the common problem of having the major consumable available but not the supporting item required to complete the maintenance or replacement step.

Planning replacement for ferrules

Ferrules are small compression seals fitted around the column at connection points such as the inlet and detector, and although small, they are closely linked to leak control. The pillar article notes that ferrules create seals at column connection points, and that incorrect ferrule material, poor installation or reuse can contribute to leaks and unstable results. Common ferrule material families include graphite, graphite/Vespel blends and Vespel (polyimide), each with different temperature limits and reusability characteristics, so material selection should match the inlet or detector temperature and column type.

Ferrule replacement planning should be connected to column changes, inlet or detector maintenance, leak checks and installation events. Ferrules should not be treated as endlessly reusable parts. Disturbed, compressed, damaged or poorly fitted ferrules can create practical problems that cost far more time than the ferrule itself.

The replacement plan should specify the approved ferrule type, size, material, fitting compatibility and column dimensions. Where the laboratory runs multiple GC systems or column formats, this prevents confusion between similar-looking parts.

Lab managers should also ensure that ferrules are stocked with the other parts needed for column installation. A new column without the correct ferrules, nuts or fittings can still leave the instrument unavailable. A documented leak check after ferrule or column installation is good practice to confirm seal integrity before samples are run.

Planning replacement for GC syringes

GC syringes affect injection repeatability. The pillar guide notes that microsyringes influence injection precision and reproducibility, and that needle style, volume, plunger type and sample compatibility should match the injection method. It also notes that bent needles, sticky plungers or poor washing can increase variability in high-throughput laboratories. Needle tip style also matters for autosampler use: cone-tipped needles are generally required for septum-piercing autosamplers, while bevelled needles are more common for manual injection, and substituting one for the other can affect septum wear and injection reproducibility.

Syringe replacement planning should consider both wear and method criticality. A syringe may need replacement because the needle is bent, the plunger movement is poor, the syringe is blocked, carryover becomes difficult to control, or injection reproducibility deteriorates. In autosampler workflows, compatibility with the instrument and method is also essential.

The replacement record should capture syringe volume, needle length, needle gauge, needle tip style, plunger type, autosampler compatibility and approved use. “10 µL GC syringe” is usually not enough for repeat purchasing unless the laboratory has only one approved syringe format.

For busy labs, it is sensible to hold spare syringes for routine GC systems rather than relying on urgent replacement. A syringe failure can stop a sequence even when the instrument, method and samples are ready.

Planning replacement for gas filters

Gas filters and traps are often overlooked because they sit outside the immediate sample preparation workflow. Yet carrier gas and detector gas quality can influence baseline stability, detector performance, column life and system consistency. The pillar guide notes that oxygen, moisture and hydrocarbon contamination can affect detector performance, column life and baseline stability, and that gas filters and traps are used to protect the system and improve consistency. Moisture traps, oxygen traps and hydrocarbon traps are typically separate, gas-specific filter types rather than a single universal filter, so the filter configuration should be matched to the specific carrier or detector gas in use.

Replacement planning for gas filters should be based on manufacturer guidance, indicator status where relevant, installation date, gas usage, laboratory risk tolerance and method sensitivity. Laboratories should avoid making assumptions about filter life without reference to the product, gas supply and workload.

A good gas filter record should identify the gas type, filter function, instrument association, installation date, replacement trigger, connection type and reorder reference. Responsibility should be clear. If nobody owns the gas filter check, it is easy for the filter to become invisible until performance problems appear.

For laboratories managing multiple GC instruments, gas filter planning should be part of the same consumables control process as liners, septa, ferrules and syringes. Laboratories switching to hydrogen carrier gas should also review filter and leak-check requirements specific to hydrogen, given its different filtration needs and flammability profile compared with helium or nitrogen.

Planning replacement for GC columns

GC columns are more expensive and method-critical than many other consumables, but they still need replacement planning. This guide focuses on capillary columns, which are standard in most modern routine GC methods; packed columns, though less common today, have different ferrule, fitting and flow requirements and are not covered here. A column may be replaced because of loss of resolution, contamination, high bleed, physical damage, poor peak shape, unacceptable retention behaviour or method transfer requirements. Column bleed is a particular concern for GC-MS methods, where it raises chemical background noise and can obscure or distort low-level analyte peaks even when it has little visible effect on a flame ionisation or other non-MS detector trace. Not every performance issue means the column must be replaced, but column replacement should never be left to panic ordering.

A GC column replacement plan should identify which columns are critical to routine methods, which methods use them, whether approved alternatives exist, and how quickly the laboratory needs replacement stock if a column fails.

For QA/QC laboratories, the column record should include stationary phase, length, internal diameter, film thickness, temperature limits, manufacturer reference and approved alternatives. These dimensions are not interchangeable: longer columns and thicker films generally improve resolution and capacity at the cost of longer analysis time and lower efficiency, so an alternative column should be assessed against these tradeoffs rather than treated as equivalent solely because it shares the same stationary phase. The GC Columns category is the appropriate LabFriend route for column replacement and comparison.

Where a method is validated, client-specified or performance-sensitive, column substitution should be reviewed carefully. A column described as equivalent may still differ in selectivity, bleed profile, dimensions or method behaviour. New columns and liners typically require conditioning or bake-out under carrier gas flow before analytical use, to remove manufacturing residues that could otherwise contribute to baseline noise or ghost peaks.

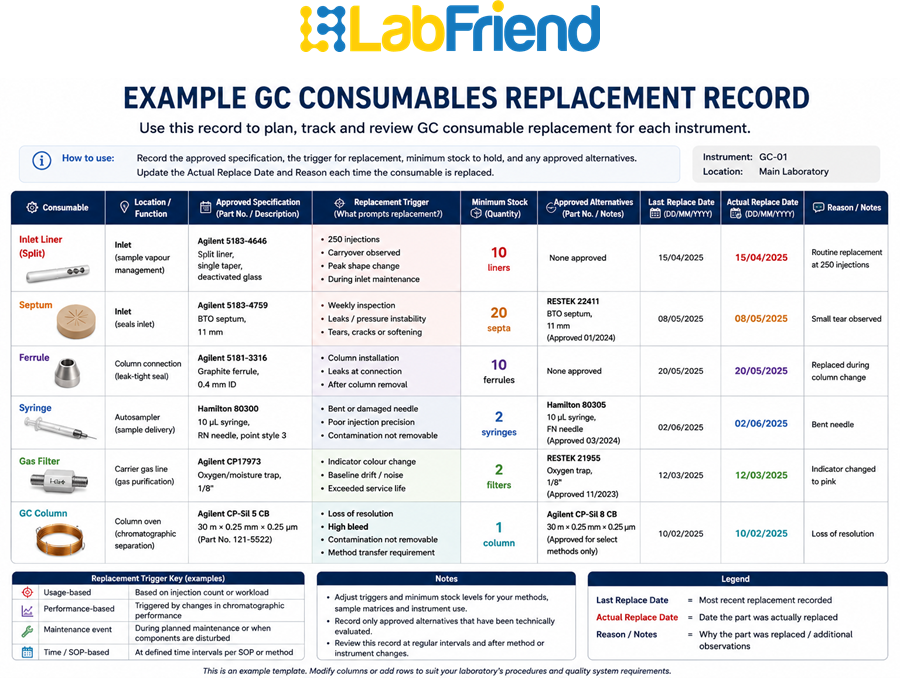

Building a GC consumables replacement record

The replacement record is the practical tool that turns good intentions into repeatable purchasing. It does not need to be complicated, but it should be specific enough to prevent mistakes. In regulated or audited environments, recording the supplier’s lot or batch number alongside the approved specification supports traceability during investigations.

A useful GC consumables replacement record should show what is approved, where it is used, when replacement is triggered, how much stock should be held, and whether alternatives are allowed.

Record field	What to capture
Consumable type	Liner, septum, ferrule, syringe, gas filter, column, seal or fitting
Instrument / method	Which GC system or method uses it
Approved specification	Key technical details required for correct reordering
Replacement trigger	Usage, time, performance symptom, maintenance event or SOP requirement
Minimum stock	Quantity required before reordering is triggered
Approved alternative	Specific alternative only, where technically accepted
Substitution control	Whether scientist, QA/QC or lab manager approval is required
Reorder route	LabFriend category, quote reference, SKU or internal purchasing code

The value of this record is not paperwork. It protects uptime. It helps analysts avoid uncertainty, helps procurement order correctly, and helps lab managers see which consumables are most exposed to stockout risk.

Minimum stock levels and reorder triggers

Minimum stock levels should be based on usage frequency, supplier lead time, method criticality and the cost of running out. A lab manager does not need the same stock level for every GC consumable.

High-use, low-cost consumables such as septa, liners and ferrules may justify a higher buffer. More expensive items such as columns may require a different approach, especially if only one method uses the column. Gas filters may be planned around expiry, indicator status or scheduled checks. Syringes may need spares where autosampler uptime is critical.

The key is to avoid setting reorder points by habit. A better approach is to ask:

Question	Planning implication
How often is the consumable used?	Helps set routine stock quantity
How quickly can it be sourced?	Helps set reorder buffer
What happens if it runs out?	Helps prioritise critical items
Is an approved alternative available?	Reduces emergency substitution risk
Is the method client-specified or validated?	Increases need for exact replacement stock

For LabFriend UK, this is commercially important because GC consumables often create repeat purchasing opportunities. A first order for liners, ferrules or syringes should be converted into a recorded repeat-use list wherever the customer has recurring GC workload.

Approved alternatives and substitution control

Approved alternatives are useful. Uncontrolled substitutions are risky.

Busy laboratories often face substitution pressure when the preferred item is out of stock, an urgent method needs to run, or procurement sees a cheaper equivalent. That does not mean alternatives should be avoided altogether. It means they should be approved before the emergency.

A substitute GC consumable should be reviewed where it could affect method performance, traceability, reproducibility, leak control or contamination risk. This applies especially to liners, columns, syringes, ferrules and gas filters. Septa and seals can also matter where temperature, sample type, sealing behaviour or contamination risk are important.

The replacement plan should state whether substitution is allowed, who can approve it, and which alternatives are already accepted. This makes procurement faster without weakening technical control.

Where LabFriend UK fits

LabFriend UK is well suited to supporting GC consumables replacement planning because the business model is ecommerce-led, category-based and repeat-purchasing friendly. The About page describes LabFriend UK as supporting online product search and purchase, quotation support, direct delivery and repeat purchasing convenience for UK laboratories.

For a busy GC laboratory, this means LabFriend UK can support two purchasing behaviours. The first is immediate product discovery through live categories such as GC consumables, GC columns and wider gas chromatography products. The second is repeat-order development, where the laboratory builds an approved list of liners, septa, ferrules, syringes, gas filters, columns and related parts for ongoing purchasing.

For laboratories that need help matching repeat-use GC consumables or building a practical reorder list, the appropriate next step is to contact LabFriend UK.

Common mistakes in GC consumables replacement planning

The first mistake is replacing only after failure. This creates avoidable troubleshooting and can interrupt routine GC sequences when a simple consumable stock check would have prevented the issue.

The second mistake is using generic descriptions. “Ferrules”, “liners” or “GC syringe” is not enough for repeat ordering. The approved specification must be recorded clearly.

The third mistake is setting replacement intervals without considering the sample matrix. Dirty samples, high-boiling compounds, reactive analytes and heavy workloads may demand different replacement behaviour from clean, low-throughput methods.

The fourth mistake is forgetting gas filters. Because filters are not handled during every sample run, they can disappear from the lab manager’s daily view.

The fifth mistake is allowing emergency substitutions without technical review. This may keep the method running today, but it can create reproducibility, documentation or performance issues later.

Another common mistake is overlooking storage conditions and shelf life. Septa and liners can degrade or pick up contamination if stored incorrectly, so storage practice should be part of the consumables control programme rather than an afterthought.

The final mistake is failing to connect replacement planning with purchasing. A scientifically sound replacement plan is only useful if the correct parts are available when needed.

Conclusion: turn GC replacement from a reaction into a repeatable system

GC consumables replacement planning is not about replacing every part as often as possible. It is about keeping busy laboratories in control of the parts that protect GC reliability.

The right plan combines method knowledge, workload awareness, replacement triggers, minimum stock levels and approved alternatives. Liners, septa, ferrules, syringes, gas filters and columns should all be reviewed through this lens. Some items will be replaced by usage, some by performance symptoms, some by method requirements and some during maintenance events.

For UK laboratories, the commercial benefit is straightforward. A documented replacement plan reduces urgent ordering, supports repeat purchasing, makes procurement easier and helps avoid downtime caused by missing or unsuitable consumables.

For wider chromatography consumables guidance, including both gas chromatography and liquid chromatography workflows, read The Complete Guide to Chromatography Consumables for UK Laboratories. To build a repeat-order GC consumables list, browse GC consumables, compare GC columns, explore gas chromatography products, or contact LabFriend UK.

Frequently Asked Questions

How often should GC consumables be replaced?

GC consumables should be replaced according to method requirements, sample matrix, injection frequency, observed performance and internal laboratory procedures. Fixed schedules can help, but they should be adjusted for workload and method sensitivity.

When should GC inlet liners be replaced?

GC inlet liners may need replacement when contamination, carryover, poor peak shape, active-site effects, poor reproducibility or dirty sample matrices become relevant. Some laboratories also replace liners after a defined number of injections or sample batches.

When should GC septa be replaced?

GC septa should be replaced when piercing wear, coring, leaks, contamination or sealing issues become likely. Replacement timing depends on injection frequency, inlet temperature, septum type and method requirements.

Should GC ferrules be reused?

Ferrules should be treated carefully. Reuse may increase the risk of poor sealing, leaks or installation issues, especially after disturbance or compression. Follow instrument, method and manufacturer guidance.

How should GC syringe replacement be planned?

GC syringe replacement should consider needle condition, plunger movement, carryover, blocked needles, autosampler compatibility and injection reproducibility. Busy laboratories should hold approved spare syringes for critical methods.

When should GC gas filters be replaced?

GC gas filters should be replaced according to manufacturer guidance, indicator status where relevant, gas usage, installation date and method sensitivity. Gas filters should be included in the laboratory’s consumables replacement record.

When should a GC column be replaced?

A GC column may need replacement when performance degradation, loss of resolution, excessive bleed, contamination, physical damage or method requirements justify it. Not every chromatographic issue means the column is the cause, so troubleshooting should be method-led.

What should be included in a GC consumables replacement record?

A GC consumables replacement record should include the consumable type, instrument or method, approved specification, replacement trigger, minimum stock quantity, approved alternatives, substitution rules and reorder route.

How can laboratories reduce emergency GC consumables ordering?

Laboratories can reduce emergency ordering by setting minimum stock levels, recording approved specifications, planning replacement triggers, assigning responsibility and building a repeat-order list with a supplier such as LabFriend UK.

Does GC-MS detection change consumables replacement priorities?

GC-MS systems are generally more sensitive to detector contamination and background noise than non-MS GC detectors, so column bleed, liner cleanliness and gas purity may need closer attention and more frequent inspection.
